Keeler Practitioner Fibre Optic Diagnostic Set - 2.8v

Keeler's top of the range battery powered diagnostic set ideally suited to the primary care professional.

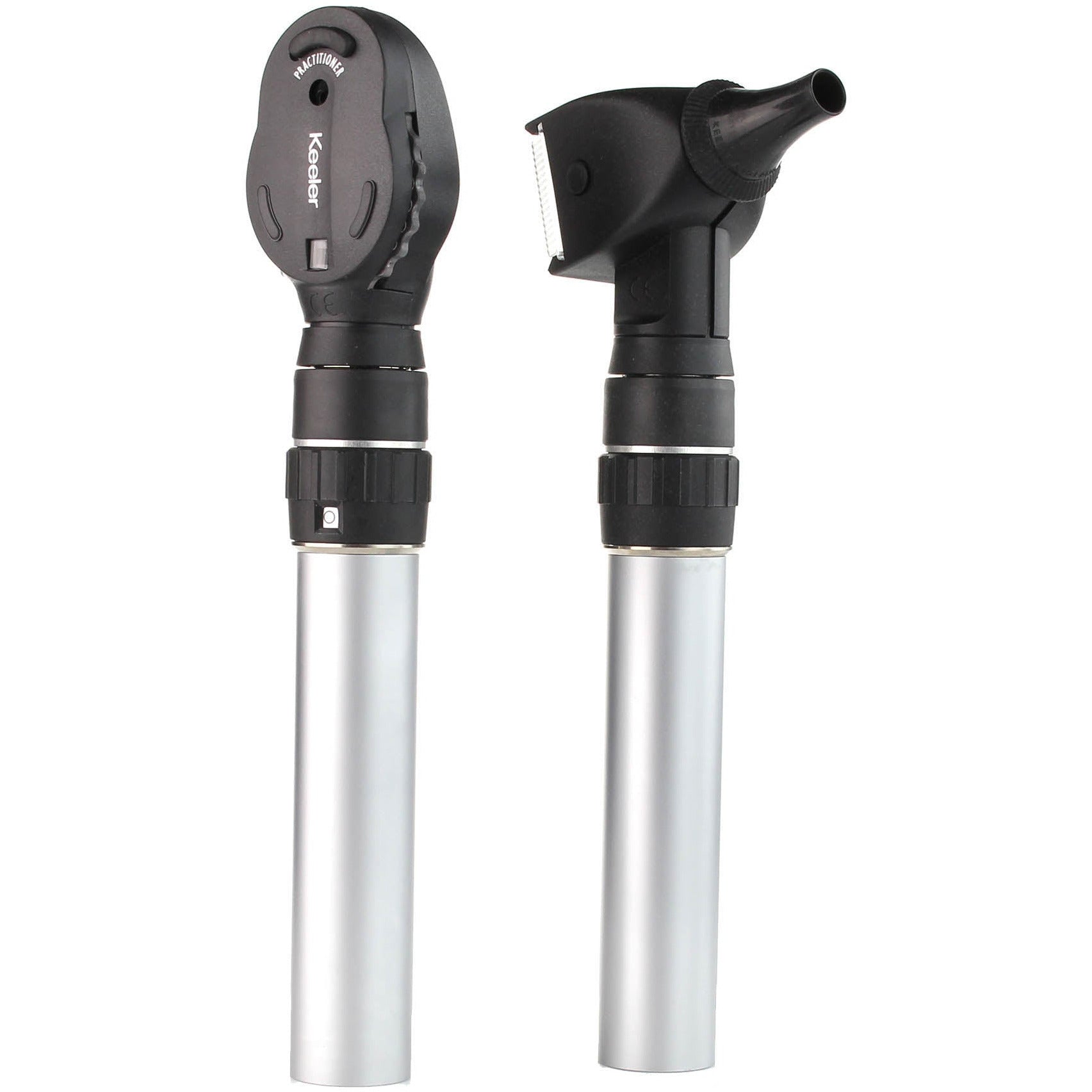

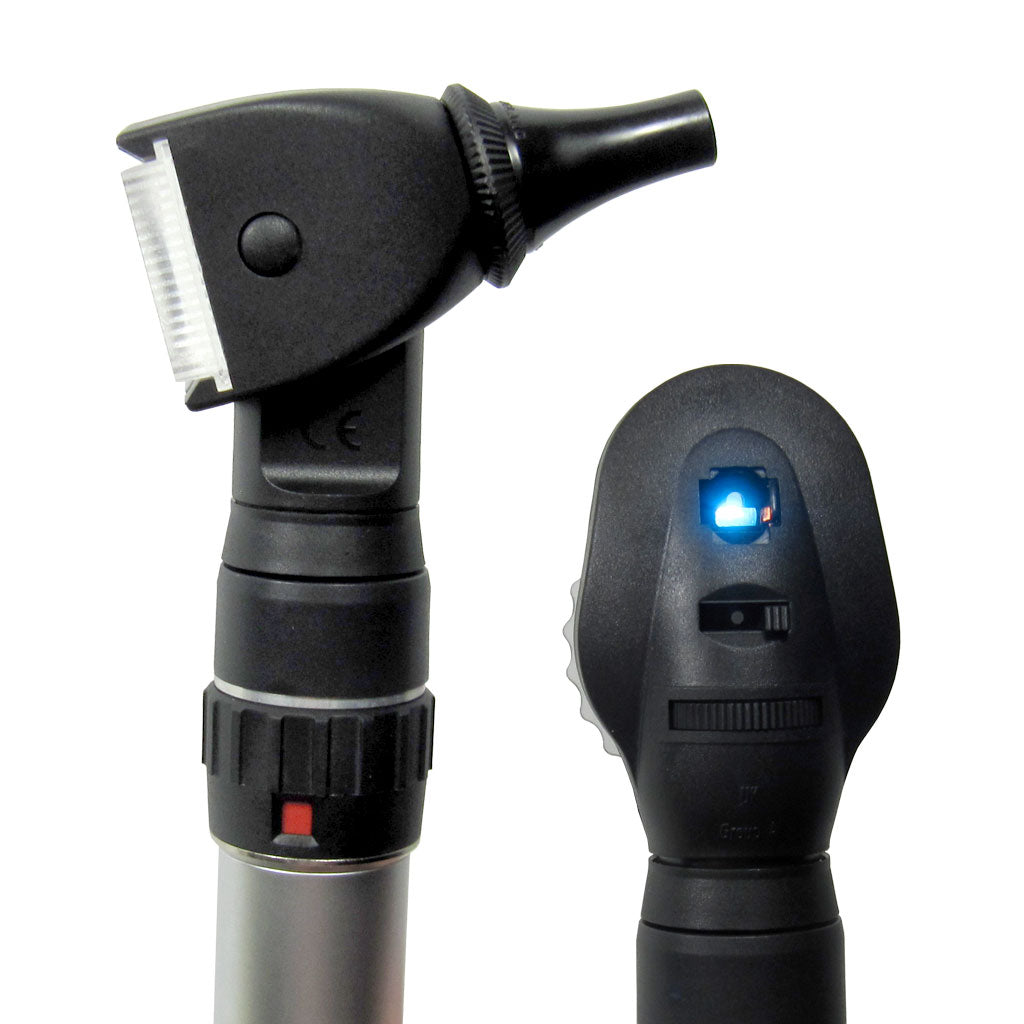

The set consists of:

• 1x Premium fiber-optic otoscope.
• 1x Practitioner ophthalmoscope.
• 1x Rheostat controlled battery powered handle.
• 1x Hard carry case.
• 5x Re-usable speculae.
• 5x Disposable speculae.
• 2 Replacement bulbs.

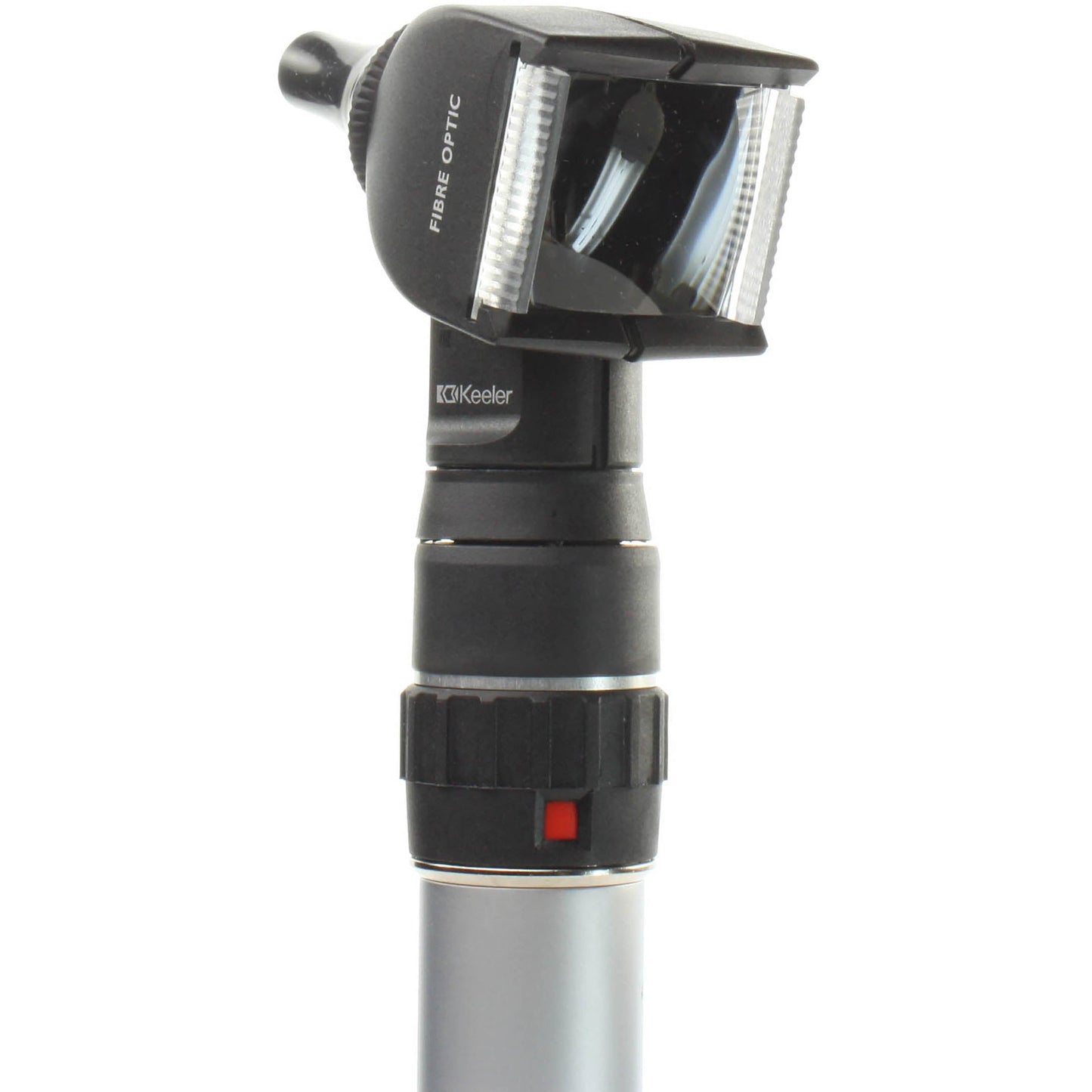

Premium Fibre Optic Otosccope

• Large slide aside 2.5x lens for clear view of aural structures and foreign body removal procedures under magnification.
• Fibre optics produce a ring of even light for an unobstructed, glare-free view.
• Insufflation port for manipulation of the tympanic membrane (bulb not included)
• Soft brow-rest suitable for use with spectacles.
• Smooth, variable illumination strength and via the rheostat handle.

Practitioner Ophthalmoscope

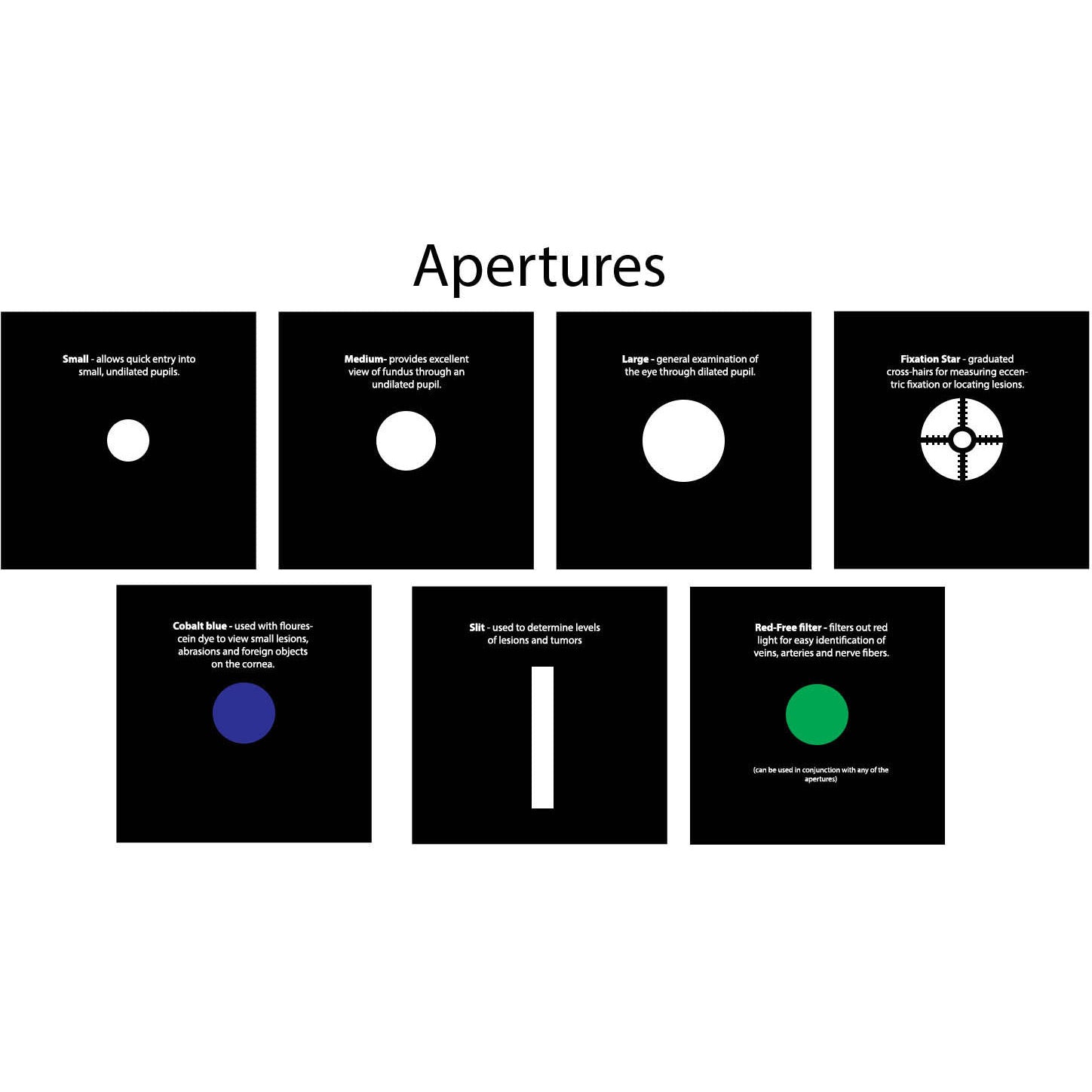

• 6 apertures:
  • Small - allows quick entry into small, undilated pupils.
  • Medium- provides excellent view of fundus through an undilated pupil.
  • Large - general examination of the eye through dilated pupil.
  • Fixation Star - graduated cross-hairs for measuring eccentric fixation or locating lesions.
  • Slit - used to determine levels of lesions and tumors.
  • Cobalt blue - used with flourescein dye to view small lesions, abrasions and foreign objects on the cornea.
  • 1 filter can be used in conjunction with any of the above apertures:
  • Red-Free filter - filters out red light for easy identification of veins, arteries and nerve fibers.
• 28 focusing lenses with a range of -25 to +40 diopters, adjustable via easy-to-reach maywheel.
• Soft brow-rest suitable for use with spectacles.
• Smooth, variable illumination strength and via the rheostat handle.
